Pure WiFi Power
All the intelligence of the RevoFi ecosystem — optimised for Wi-Fi.

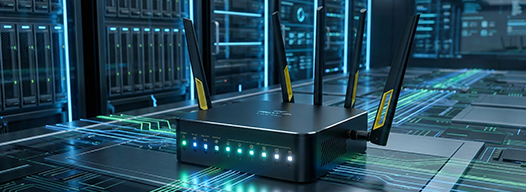

The RevoFi Link delivers the full RevoFi experience without cellular — suited to expanding your home mesh network, or to venues with existing ISP connectivity.
Built on NVIDIA Jetson edge compute with 1 TB expandable storage, three integrated Wi-Fi modules and 6 × Gigabit Ethernet on the back panel. Private AI is provided through Raven tiers; RevoFi Neural Radio — WiFi sensing for smart retail analytics runs on device.
What Makes Link Perfect
Three Integrated Wi-Fi Modules
One dedicated mesh backhaul radio (AsiaRF AW7915-NPD, 2T2R, up to 1800 Mbps) plus two client access-point radios — a 5 GHz Alfa AWUS036ACM and a 2.4 GHz Alfa AWUS036ACHM. Client traffic never shares the link between devices.
|
Self-Healing 802.11s Mesh
Native IEEE 802.11s mesh on a dedicated 5 GHz backhaul. The RevoFi mesh service handles peer join and mesh routing. Pair with Link Pro or other Links to extend coverage.
|
Edge Compute
The same NVIDIA Jetson platform as Link Pro, with 128 CUDA® cores and a Microchip ATECC608B secure element for device identity and disk-encryption key derivation.
|
Revenue Participation
RVS Proof of Availability emissions and USDC revenue share on completed paid workloads, on the same schedules as Link Pro. See the Earnings tab for the approved scenario-specific schedules.
|
Private AI Through Raven
500,000 tokens per month of cloud-side Private AI access through Raven. Account base allocation with at least one device, for H5-owned server models.
|
Private Services Suite
50 GB per month of private VPN traffic on device and server routes, and 10,000 messages per month with 2 GB of encrypted storage. Up to 5 sub-owners on your device.
|
Lower Entry Price
The same compute, mesh and private services platform at a more accessible price point. Suited to expanding your mesh or starting with RevoFi.
|
The Seamless WiFi Experience
Link broadcasts two client networks — RevoFi-5G on 5 GHz and RevoFi on 2.4 GHz for IoT and legacy devices — while mesh backhaul stays on its own dedicated radio. Manage it all with Raven.
Connectivity: Link ships without cellular or satellite connectivity and has no additional connectivity expansion slot. For an included cellular module, plus a separate empty expansion slot for a future cellular or satellite module, see Link Pro.
Built for: Consumers expanding their mesh network, venues with reliable ISP backhaul, and anyone who wants the full RevoFi private intelligence experience at an accessible price.
See the Link Specifications tab for hardware and the documented field software baseline. The Earnings tab explains the approved scenario-specific revenue schedules.
Turn Your Link or Link Pro Into a Revenue Machine
Your device works for you around the clock. Two reward types, on the schedules approved for the device programme.
Dual Reward System
The reward model distinguishes RVS Proof of Availability emissions from USDC revenue share on completed, paid customer workloads.
1. RVS Tokens — Proof of Availability
Being online and healthy earns RVS tokens. No action required.
| Metric |
Value |
| Emission Ceiling |
Up to 50 RVS per device per day, scaled by the device’s verified availability score |
| Distribution |
Weekly airdrop from the vesting vault |
| Token Network |
Base (L2) |
| What Counts |
Device online and reporting to RevoFi cloud services |
RVS emissions and Proof of Availability are not live under the documented release baseline. The figure above is a planned ceiling, not an active earnings rate.
2. USDC Revenue — Proof of Work
When your device completes paid customer jobs (AI inference, CDN, compute), the revenue share is paid in USDC stablecoin directly to your wallet.
| Metric |
Value |
| Payment Type |
USDC (stablecoin) |
| When Paid |
Per completed job |
| Your Share |
Set by the revenue share waterfall below, which depends on the scenario and the roles held |
| What Qualifies |
AI inference jobs, CDN delivery, compute tasks |
Revenue Share Waterfall
| Scenario |
Phase 1 |
Phase 2 |
| B2B only — separate funding device purchasers and channel partners |
Funding device purchasers 80%; RevoFi 16%; channel partners 4% |
RevoFi 60%; channel partners 20%; funding device purchasers 20% |
| B2B only — channel partner purchases devices and fills both roles |
RevoFi 16%; channel partners 84% |
RevoFi 60%; channel partners 40% |
| B2C only |
RevoFi 16%; B2C device purchasers 84% |
RevoFi 60%; B2C device purchasers 40% |
| Mixed B2B/B2C — without separate funding device purchasers |
RevoFi 16%; channel partners and B2C device purchasers 84% combined |
RevoFi 60%; channel partners and B2C device purchasers 40% combined |
| Mixed B2B/B2C — with funding device purchasers |
Funding device purchasers and B2C device purchasers 80% combined; RevoFi 16%; channel partners 4% |
RevoFi 60%; channel partners 20%; funding device purchasers and B2C device purchasers 20% combined |
Revenue distribution depends on the scenario and the roles held by device purchasers and channel partners. A channel partner that purchases devices directly can occupy both roles. Mixed scenarios apply to the device count and ownership mix within each 1,000-device cluster. Combined percentages describe a shared pool, not a separate allocation to each participant.
Your Earnings Wallet
Earnings are paid directly to your non-custodial wallet in the Raven tiers or the Raven mobile and desktop applications:
- RVS tokens — weekly distribution
- USDC revenue — per completed job
- Full control — your keys, your crypto
Raven is available now via web application. Raven mobile and desktop applications are in development.
The approved revenue schedules do not establish activation of reward mechanisms, a payout cadence, or a guaranteed return. See RevoFi for platform information.
Included Services
Every device comes with a monthly allowance across the RevoFi private services. Usage beyond the allowance is metered.
Monthly Allowances
| Service |
Monthly Allowance |
Details |
| Private AI |
500,000 tokens |
Cloud-side Private AI access through Raven. Account base allocation with at least one device, for H5-owned server models. |
| Private VPN |
50 GB |
Decentralised VPN traffic on device and server routes. AWS routes are metered. |
| Private Messaging |
10,000 messages |
Includes 2 GB of encrypted storage. |
| Cellular Data LINK PRO ONLY |
500 MB for the first 6 months as part of device allocations |
Telit module and microSIM/eSIM included at shipment. Data plan subscription required — purchased separately. |
| Additional Users |
Up to 5 sub-owners |
Share access to your device monthly allocations with household, team members, customers, friends. |
Connectivity by Model

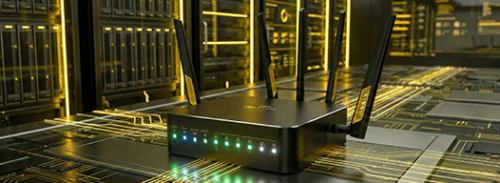

Link Pro
Ships with the Telit FN990A28 cellular module and microSIM/eSIM included at shipment: 500 MB for the first 6 months as part of device allocations. Data plan subscription required — purchased separately. Its separate empty 1 × mPCIe expansion slot supports a future additional cellular or satellite module, not Wi-Fi.
|
Link
Ships without cellular or satellite connectivity and has no additional connectivity expansion slot.
|
No satellite module or satellite subscription ships with either device. RevoFi will offer certified and integrated compatible modules and plans as separate additional purchases through the device shop as they become available.
Accessing Your Services
Private AI, private messaging and private VPN are reached through Raven:
- Raven — available now via web application at revofi.ai
- Raven mobile and desktop — in development
- Private AI is provided through Raven tiers; RevoFi Neural Radio — WiFi sensing for smart retail analytics runs on device
Allowances are per account with at least one device. Usage above an allowance, and metered routes, are billed separately.
Your Gateway to the Intelligent Cloud
Every Link and Link Pro connects you to the complete RevoFi ecosystem. Four pillars. One unified experience.
The RevoFi Ecosystem
YOU ARE HERE
Devices
revofi.com
The hardware that powers it all. Your Link or Link Pro is the physical foundation — edge compute, storage and connectivity in one device.
|
RevoFi
revofi.ai
Product, network and device information for the RevoFi platform.
Visit revofi.ai →
|
Raven
revofi.ai
Private AI, private messaging and private VPN. Available now via web application; mobile and desktop applications are in development.
Visit revofi.ai →
|
Revos (RVS)
revos.io
The economic layer. Token information and the claim portal. RVS is an ERC-20 token on Base (L2).
Visit revos.io →
|
How It All Connects
YOUR LINK / LINK PRO
Edge compute, storage, connectivity
|
|
↓
|
RAVEN
Private AI • Private messaging • Private VPN
|
|
↓
|
REVOFI CLOUD SERVICES
Job routing • Fleet configuration • Billing
|
|
↓
|
REVOS (Token Layer)
RVS incentives • USDC revenue share
|
Raven Features
Fleet Manager
Dashboard for your devices — status, health and earnings in one place.
|
Billing Hub
Credit balance, top-up and full payment history.
|
Private Services
Controls for Private AI, private messaging, private VPN and subscription services settings.
|
Rewards Wallet
Non-custodial wallet for RVS and USDC. Your keys, your crypto, your control.
|
Raven is available now via web application. Raven mobile and desktop applications are in development.
Raven Subscription Services
- Raven Business and Enterprise
- Smart Retail / Venue Analytics
- SD-WAN & Enterprise Network
- Secure Firewall Services
- Cellular Data (Link Pro only)
Get Started
| 1. Unbox and power on — connect your Link or Link Pro to power and Ethernet (or use the included cellular data on Link Pro) |
| 2. Open Raven — sign in at revofi.ai |
| 3. Pair your device — add the device to your account |
| 4. Complete setup — the device applies its current signed software release |
| 5. Start using your private services |
Questions? Visit revofi.ai or contact us.
Technical Specifications
Full hardware specs for the RevoFi Link.
CPU / GPU / Memory / Storage
| Compute Module |
NVIDIA Jetson Nano (P/N 900-13448-0020-000) |
| GPU |
NVIDIA Maxwell architecture with 128 CUDA® cores |
| CPU |
Quad-core ARM Cortex-A57 MPCore processor |
| Memory |
4 GB 64-bit LPDDR4, 1600MHz (25.6 GB/s) |
| Onboard Storage |
16 GB eMMC 5.1 |
| Expandable Storage |
1TB MicroSD |
| Storage Class |
MicroSDXC C10 U3 V30 A2 UHS-I |
Wi-Fi Radios
Three integrated Wi-Fi modules
Link integrates three Wi-Fi modules with separate roles: one mesh backhaul radio and two client access-point radios. Keeping mesh backhaul on its own radio means client traffic does not share the link between devices.
| Radio 1 — Mesh backhaul |
AsiaRF AW7915-NPD (MediaTek MT7915E), native mPCIe. 2T2R, up to 1800 Mbps. Dual-band concurrent: a dedicated 5 GHz IEEE 802.11s mesh backhaul on channel 149 (HT20), with the 2.4 GHz half held in reserve. Driver: mt7915e. |
| Radio 2 — 5 GHz access point |
Alfa AWUS036ACM (MediaTek MT7612U), USB. 5 GHz client access point, IEEE 802.11ac with 80 MHz channels and 802.11n. Broadcasts RevoFi-5G. Driver: mt76x2u. |
| Radio 3 — 2.4 GHz access point |
Alfa AWUS036ACHM (MediaTek MT7610U), USB. 2.4 GHz client access point for IoT and legacy devices, IEEE 802.11n with HT40. Broadcasts RevoFi. Driver: mt76x0u. |
Mesh Network Architecture
| Mesh Protocol |
IEEE 802.11s native mesh |
| Backhaul Radio |
Dedicated 5 GHz on the AW7915-NPD, channel 149, HT20 |
| Mesh Management |
RevoFi mesh service handles peer join and mesh routing |
| Client Access |
Separate 5 GHz and 2.4 GHz access-point radios, so client traffic does not share the mesh backhaul |
Mesh and radio behaviour describe the documented field software baseline.
I/O & Expansion
| Ethernet |
6 × Gigabit Ethernet, back panel |
| Display Output |
1 × HDMI 2.1 (J11) |
| CSI Camera |
1 × CSI camera interface (15-position FPC, J5) |
Carrier Board
| Base Board |
RevoFi Proprietary B01 Carrier |
| Power Subsystem |
12V 8A PSU input, High-amperage DC-DC for mPCIe/USB buses |
| Unique Features |
Custom high-current power bus for simultaneous multi-radio Wi-Fi operation |
Software Stack
| Operating System |
Ubuntu 18.04 LTS (aarch64) on NVIDIA L4T R32.6.1 |
| Kernel |
Linux 4.9.253-tegra |
| Wi-Fi Drivers |
MT76 backport stack — mt7915e, mt76x2u, mt76x0u; mac80211 (backported) |
| Mesh |
IEEE 802.11s, managed by the RevoFi mesh service on a dedicated 5 GHz backhaul radio |
| Access Point |
hostapd with dnsmasq (DHCP/DNS), 5 GHz and 2.4 GHz |
| Container Runtime |
K3s (containerd) with NVIDIA container runtime, installed during provisioning |
| Fleet Management |
Cloud-managed configuration and telemetry via Raven |
| Secure Element |
Microchip ATECC608B — device identity and disk-encryption key derivation |
| Secure Boot |
NVIDIA PKC-fused signed boot chain |
| Updates |
Signed over-the-air updates (OTA): fully managed staged rollout and automatic rollback mechanisms. |
| AI |
RevoFi Neural Radio: WiFi sensing for smart retail analytics. |
Power Consumption
| Idle (measured) |
3.1 W, headless with no active SIM |
| Load (estimated) |
Approximately 8.5 W |
| Maximum Module Budget |
10 W MAXN ceiling |
Readings are from the INA3221 system rail. Load is an estimate and the MAXN ceiling is a module budget; these are not a certified whole-enclosure wall-power maximum.
Note: Link ships without cellular or satellite connectivity and has no additional connectivity expansion slot. For an included cellular module, plus a separate empty expansion slot for a future cellular or satellite module, see Link Pro.
